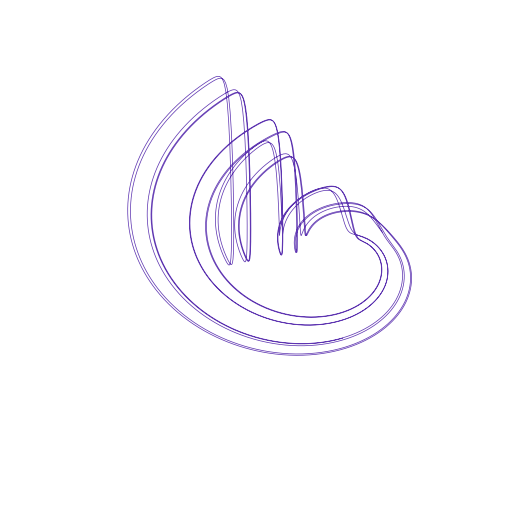

JerkCircuit

Systems · Continuous · Physical systems

Dimension: 3

Equations

\[ \begin{aligned} \dot{y_{0}} &= y_{1} \\ \dot{y_{1}} &= y_{2} \\ \dot{y_{2}} &= - eps \left(e^{\frac{y_{1}}{y_{0}}} - 1\right) - y_{0} - y_{2} \end{aligned} \]

Parameters

parameter	default
eps	1e-09
y0	0.026

Usage

import tsdynamics as ts

sys = ts.JerkCircuit()
traj = sys.integrate(final_time=100.0, dt=0.01)
