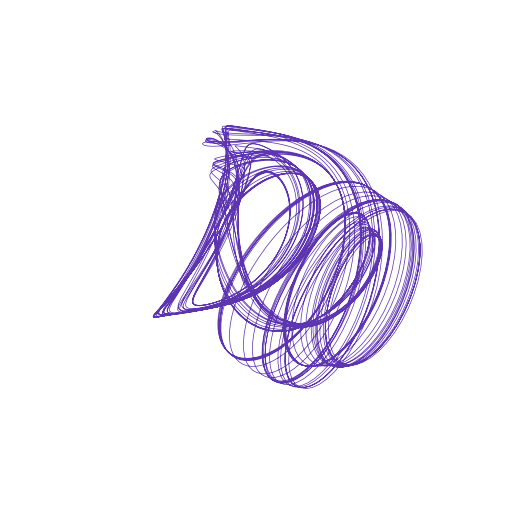

Lorenz84

Systems · Continuous · Chaotic attractors

Dimension: 3

Equations

\[ \begin{aligned} \dot{y_{0}} &= a f - a y_{0} - y_{1}^{2} - y_{2}^{2} \\ \dot{y_{1}} &= - b y_{0} y_{2} + g + y_{0} y_{1} - y_{1} \\ \dot{y_{2}} &= b y_{0} y_{1} + y_{0} y_{2} - y_{2} \end{aligned} \]

Parameters

parameter	default
a	1.32
b	7.91
f	4.83
g	4.194

Usage

import tsdynamics as ts

sys = ts.Lorenz84()
traj = sys.integrate(final_time=100.0, dt=0.01)

Back to Chaotic attractors
