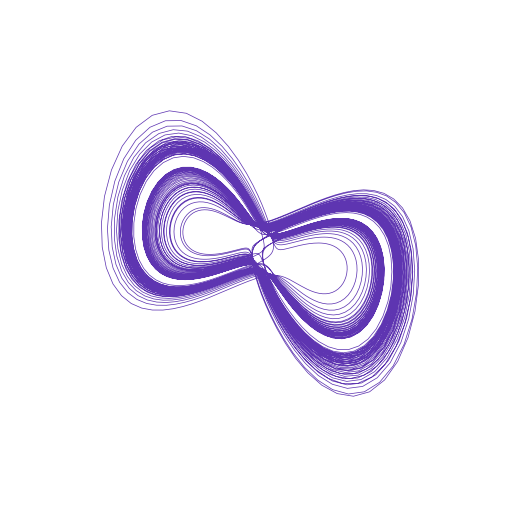

MooreSpiegel¶

Systems · Continuous · Oscillatory systems

Dimension: 3

Equations¶

\[ \begin{aligned} \dot{y_{0}} &= y_{1} \\ \dot{y_{1}} &= a y_{2} \\ \dot{y_{2}} &= - b y_{0} + eps y_{1} - y_{0}^{2} y_{1} - y_{2} \end{aligned} \]

import tsdynamics as ts

sys = ts.MooreSpiegel()
traj = sys.integrate(final_time=100.0, dt=0.01)
