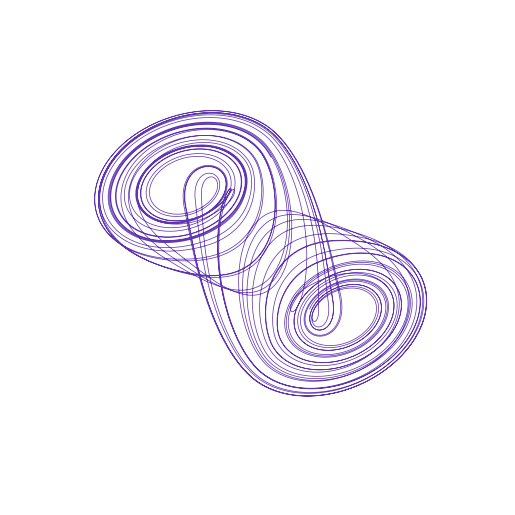

Chua

Systems · Continuous · Chaotic attractors

Dimension: 3

Equations

\[ \begin{aligned} \dot{y_{0}} &= \alpha \left(- m_{1} y_{0} - y_{0} + y_{1} - 0.5 \left(m_{0} - m_{1}\right) \left(- \left|{y_{0} - 1}\right| + \left|{y_{0} + 1}\right|\right)\right) \\ \dot{y_{1}} &= y_{0} - y_{1} + y_{2} \\ \dot{y_{2}} &= - \beta y_{1} \end{aligned} \]

Parameters

parameter	default
alpha	15.6
beta	28.0
m0	-1.142857
m1	-0.71429

Usage

import tsdynamics as ts

sys = ts.Chua()
traj = sys.integrate(final_time=100.0, dt=0.01)
