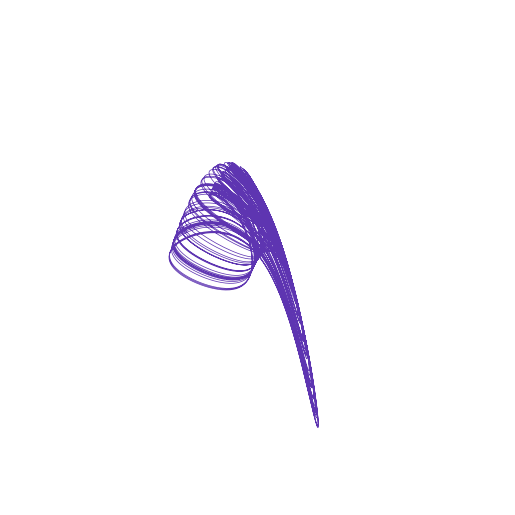

SaltonSea

Systems · Continuous · Climate geophysics

Dimension: 3

Equations

\[ \begin{aligned} \dot{y_{0}} &= - lam y_{0} y_{1} + r y_{0} \left(1 - \frac{y_{0} + y_{1}}{k}\right) \\ \dot{y_{1}} &= lam y_{0} y_{1} - \frac{m y_{1} y_{2}}{a + y_{1}} - \mu y_{1} \\ \dot{y_{2}} &= - d y_{2} + \frac{th y_{1} y_{2}}{a + y_{1}} \end{aligned} \]

Parameters

parameter	default
a	15
d	8.3
k	400
lam	0.06
m	15.5
mu	3.4
r	22
th	10.0

Usage

import tsdynamics as ts

sys = ts.SaltonSea()
traj = sys.integrate(final_time=100.0, dt=0.01)
