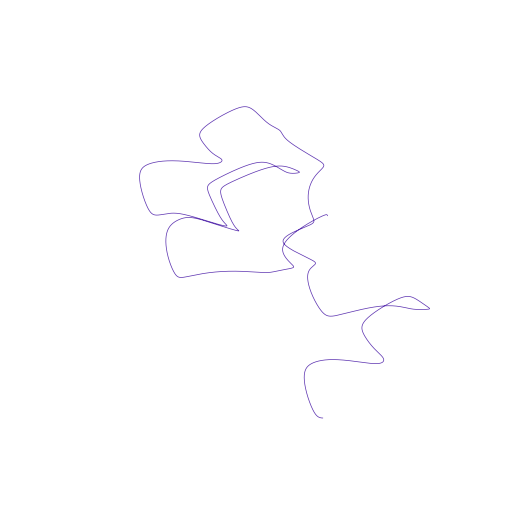

ArnoldBeltramiChildress

Systems · Continuous · Climate geophysics

Dimension: 3

Equations

\[ \begin{aligned} \dot{y_{0}} &= a \sin{\left(y_{2} \right)} + c \cos{\left(y_{1} \right)} \\ \dot{y_{1}} &= a \cos{\left(y_{2} \right)} + b \sin{\left(y_{0} \right)} \\ \dot{y_{2}} &= b \cos{\left(y_{0} \right)} + c \sin{\left(y_{1} \right)} \end{aligned} \]

Parameters

parameter	default
a	1.73205
b	1.41421
c	1

Usage

import tsdynamics as ts

sys = ts.ArnoldBeltramiChildress()
traj = sys.integrate(final_time=100.0, dt=0.01)
