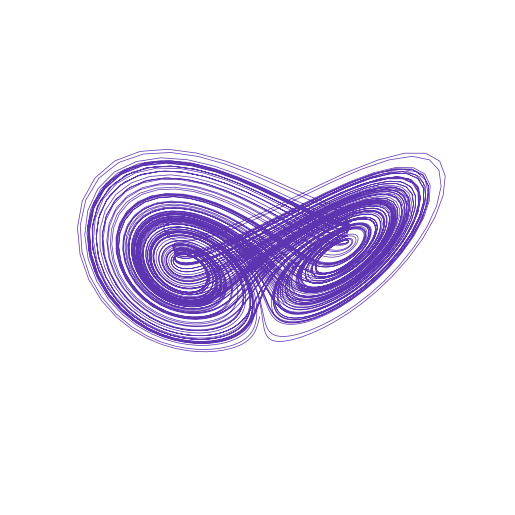

RayleighBenard

Systems · Continuous · Climate geophysics

Dimension: 3

Equations

\[ \begin{aligned} \dot{y_{0}} &= - a y_{0} + a y_{1} \\ \dot{y_{1}} &= r y_{1} - y_{0} y_{2} \\ \dot{y_{2}} &= - b y_{2} + y_{0} y_{1} \end{aligned} \]

Parameters

parameter	default
a	30
b	5
r	18

Usage

import tsdynamics as ts

sys = ts.RayleighBenard()
traj = sys.integrate(final_time=100.0, dt=0.01)
